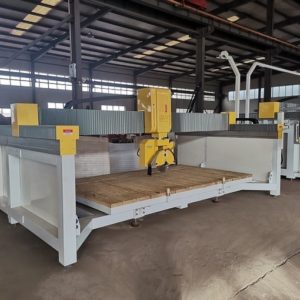

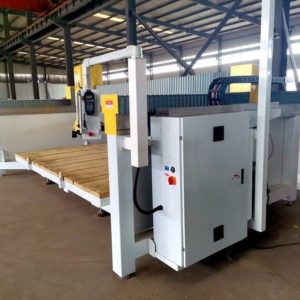

5 AXIS CNC STONE CUTTING MACHINE

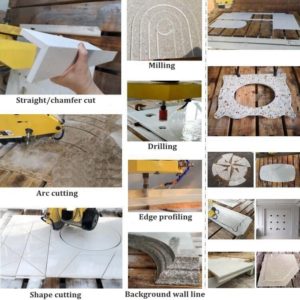

This machine is the new generation multi-function processing machine which is associated to be designed and manufactured between OMC and research institute of famous college. With pattern operation and advanced control system and synchronous CNC control system, the machine can be easily operated easily without knowing complicated CNC knowledge.This machine can be used to realize some advanced functions like : cutting line, chamfering, drilling, profiling, 3D profiling, and edge profiling, which can be used to small processing factory and countertop shops.
Characteristic:

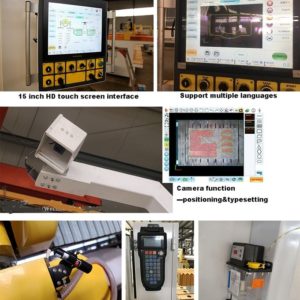

1. Powerful 7.5 kW motor with adjustable speed. 2. Full graphic operation with photo typesetting. What you see is what you will get. 3. Support cutting, milling, edge grinding, pofling and laser fixed pointing drawing. 4. High processing accuracy by using precise guide rail and rack.
5. With less electricity and more efficiency, the cost is decreased much.
6. High quality accessories and electric parts are used to secure long service life and low cost.
Model
|
MCNC-450
|
Programming method
|
CAD image input & Manual programming
|
Control method
|
CNC
|
Power
|
7.5KW (optional 4KW / 11KW)
|
Working voltage
|
380V 3phase (customized)
|
R.P.M
|
1500-6000r/min
|
Blade size
|
400mm
|
X-axis working stroke
|
3500mm
|
Y-axis working stroke
|
2000mm
|
Z-axis working stroke
|
290mm
|
A-axis working stroke
|
360° free rotation
|
B-axis working stroke
|
0-90°
|
X/Y-axis cutting speed
|
1-2000mm/min
|
Z-axis cutting speed
|
1-1000mm/min
|
A cutting speed
|
0-7r/min
|
Cutting thickness
|
100mm
|
Processing precision
|
0.2mm
|
Working table size
|
3500x2000mm
|
Overall size
|
5800x3120x3320mm
|
Weight
|
4000KG
|
![](https://www.stonesawmachine.com/wp-content/uploads/2024/06/pl72274756-remark.jpg)
![](https://www.stonesawmachine.com/wp-content/uploads/2024/06/pl72274754-5_axis_bridge_saw_machine.jpg)
![](https://www.stonesawmachine.com/wp-content/uploads/2024/06/pl72274762-remark.jpg)
![](https://www.stonesawmachine.com/wp-content/uploads/2024/06/pl72274761-remark.jpg)
![](https://www.stonesawmachine.com/wp-content/uploads/2024/06/pl72274759-remark.jpg)
![](https://www.stonesawmachine.com/wp-content/uploads/2024/06/pl72274757-remark.jpg)
![](https://www.stonesawmachine.com/wp-content/uploads/2024/06/pl72274755-remark.jpg)
![](https://www.stonesawmachine.com/wp-content/uploads/2024/06/pl72274765-remark.jpg)
![](https://www.stonesawmachine.com/wp-content/uploads/2024/06/pl72274764-remark.jpg)
![](https://www.stonesawmachine.com/wp-content/uploads/2024/06/pl72274763-remark.jpg)
![](https://www.stonesawmachine.com/wp-content/uploads/2024/06/pl72276344-remark.jpg)
![](https://www.stonesawmachine.com/wp-content/uploads/2024/06/pl72274763-remark.jpg)
